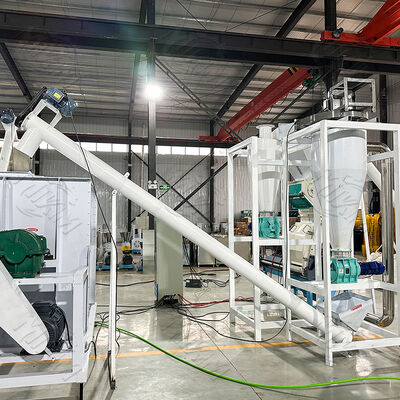

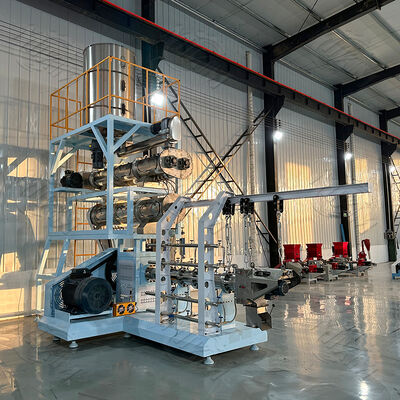

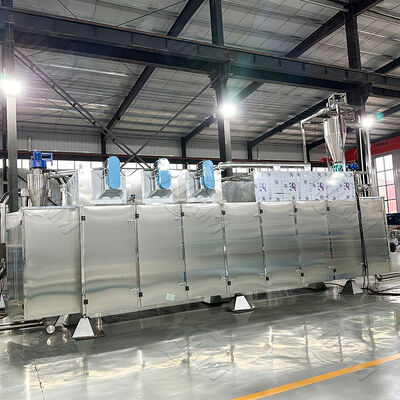

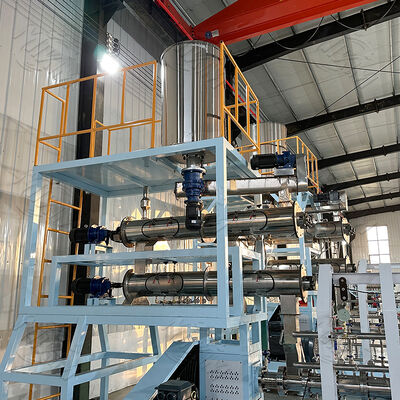

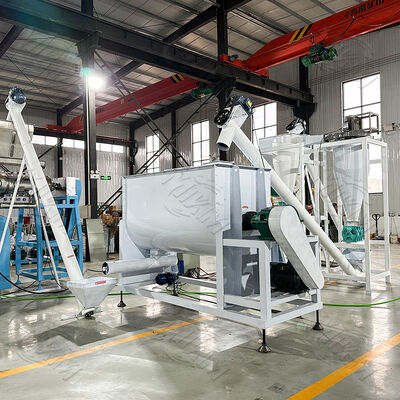

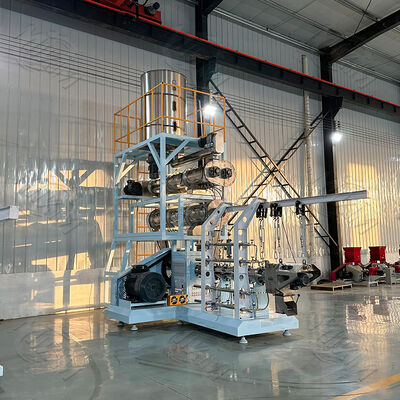

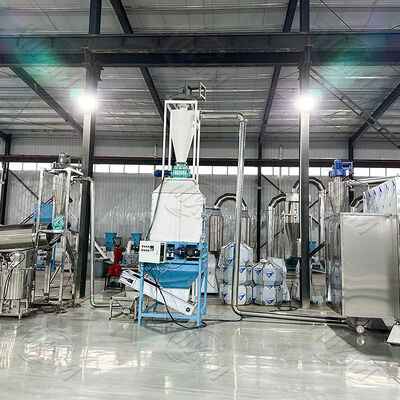

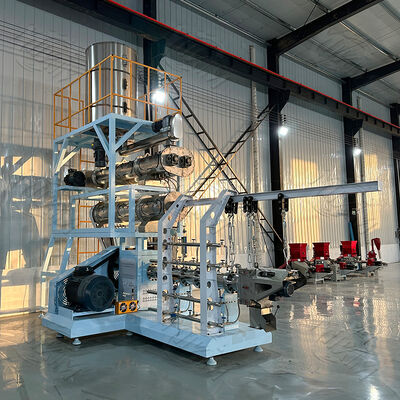

The CE-certified, fully stainless steel Extruded Aquatic Feed Pellet Production Line is sold to process raw materials into nutrient-rich pelleted feed for aquaculture and livestock farming.
Λεπτομέρειες:
| Τόπος καταγωγής: | Κίνα |
| Μάρκα: | MIKIM |
| Πιστοποίηση: | CE |
| Αριθμό μοντέλου: | D-LX-65,D-LX-70,D-LX-80,D-LX-90,D-LX-100,D-LX-135,D-LX-145,D-LX-175 |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1 σετ |
|---|---|
| Τιμή: | $8500.00 - 55500.00/ Set |
| Συσκευασία λεπτομέρειες: | συσκευασμένος από την ξύλινη συσκευασία ή τη φόρτωση εξαγωγής από το εμπορευματοκιβώτιο |
| Χρόνος παράδοσης: | 7-10 εργάσιμες ημέρες |
| Όροι πληρωμής: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Δυνατότητα προσφοράς: | 300 σύνολα το μήνα |
|
Λεπτομερής ενημέρωση |
|||
| Τύπος θέρμανσης: | Ηλεκτρισμός | Ιστορικό εργοστασίου: | 20 ετών |
|---|---|---|---|
| Κατάσταση: | ΝΕΟ | Προσδιορισμός: | Ανοξείδωτο ατσάλι 304 |
| Ηλεκτρικά στοιχεία: | SIEMENS, ABB ή κινέζικη μάρκα | Αυτόματο: | Πλήρως αυτόματος |
| Λειτουργία: | Απλή αυτόματη λειτουργία | Πηγή ισχύος: | Ηλεκτρικός |
| Επισημαίνω: | stainless steel aquatic feed pellet line,CE certified feed production line,extruded livestock feed pellet machine |
||
Περιγραφή προϊόντων
The CE-certified, fully stainless steel Extruded Aquatic Feed Pellet Production Line is designed to process raw materials into nutrient-rich pelleted feed for aquaculture and livestock farming.
Cattle feed production plant, pet fish food production plant, poultry feed production plant / small-scale complete animal feed pellet production line
This fish feed pellet production line is specifically designed for aquaculture. It combines standardized processes and specialized equipment to process various raw materials into pellet feed suitable for fish, forming a systematic production system. The core of this system is to meet the specific needs of fish for "underwater feeding, easy digestion, and resistance to water loss." It connects the end of the fish feed raw material supply chain with the end of aquaculture, serving as a fundamental supporting facility for modern aquaculture.
| Model | Capacity (kg/h) | Main motor (kw) | Feeder motor (kw) | Screw diameter (mm) | Cutter motor (kw) | Conditioner power (KW) | Machine size (m) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| D-LX-65 | 180-200 | 15.0 | 0.40 | φ60 | 0.40 | 1.5 | 1.78 * 1.25 * 1.3 | 480 |
| D-LX-70 | 250-300 | 18.5 | 0.75 | φ70 | 0.55 | 1.5 | 2.46 * 1.55 * 1.74 | 940 |
| D-LX-80 | 350-400 | 22.0 | 1.10 | φ80 | 0.55 | 1.5 | 2.65 * 1.45 * 1.75 | 1000 |
| D-LX-90 | 500-600 | 37.0 | 2.20 | φ90 | 1.50 | 3.0 | 2.6 * 2.1 * 1.9 | 2000 |
| D-LX-100 | 700-800 | 55.0 | 2.20 | φ100 | 1.50 | 3.0 | 3.2 * 1.95 * 1.9 | 2200 |
| D-LX-135 | 1000-1200 | 75.0 | 2.20 | φ135 | 2.20 | 7.5 | 3.57 * 1.98 * 1.8 | 2500 |
| D-LX-145 | 1800-2000 | 90.0 | 3.00 | φ145 | 3.00 | 7.5 | 6.6 * 2.8 * 2.33 | 3800 |
| D-LX-175 | 3000-4000 | 132.0 | 3.00 | φ175 | 3.00 | 7.5 | 6.6 * 2.9 * 2.35 | 4500 |
- High-Precision Raw Material Pretreatment: Equipped with an ultrafine grinding mill (80-120 mesh) and dual impurity removal device (vibrating screen + magnetic separator) to ensure refined raw materials and prevent damage to fish digestive tracts or equipment.
- Basic Processes for Adjusting Water Stability: Uses steam conditioning (85-95℃, 30-60 seconds) to increase gelatinization degree of raw starch from 40%-50% to 70%-80%, with precise binder addition and pelleting die extrusion (compression ratio 1:8-1:12) for water stability of 2-4 hours.
- Minimal Damage Post-Processing: Counter-flow cooler prevents cracking from temperature differences, vibrating sorting screen (±0.1mm accuracy) selects pellets for different fish sizes, with soft screens minimizing breakage (≤2% breakage rate).
What is the price of the floating fish feed making production line?
The price ranges from approximately $8,500-$55,000
Do you provide maintenance services for your customers?
Yes, we offer comprehensive after-sales maintenance services to our customers.
